LS18T (NEW)

0.00
0.00

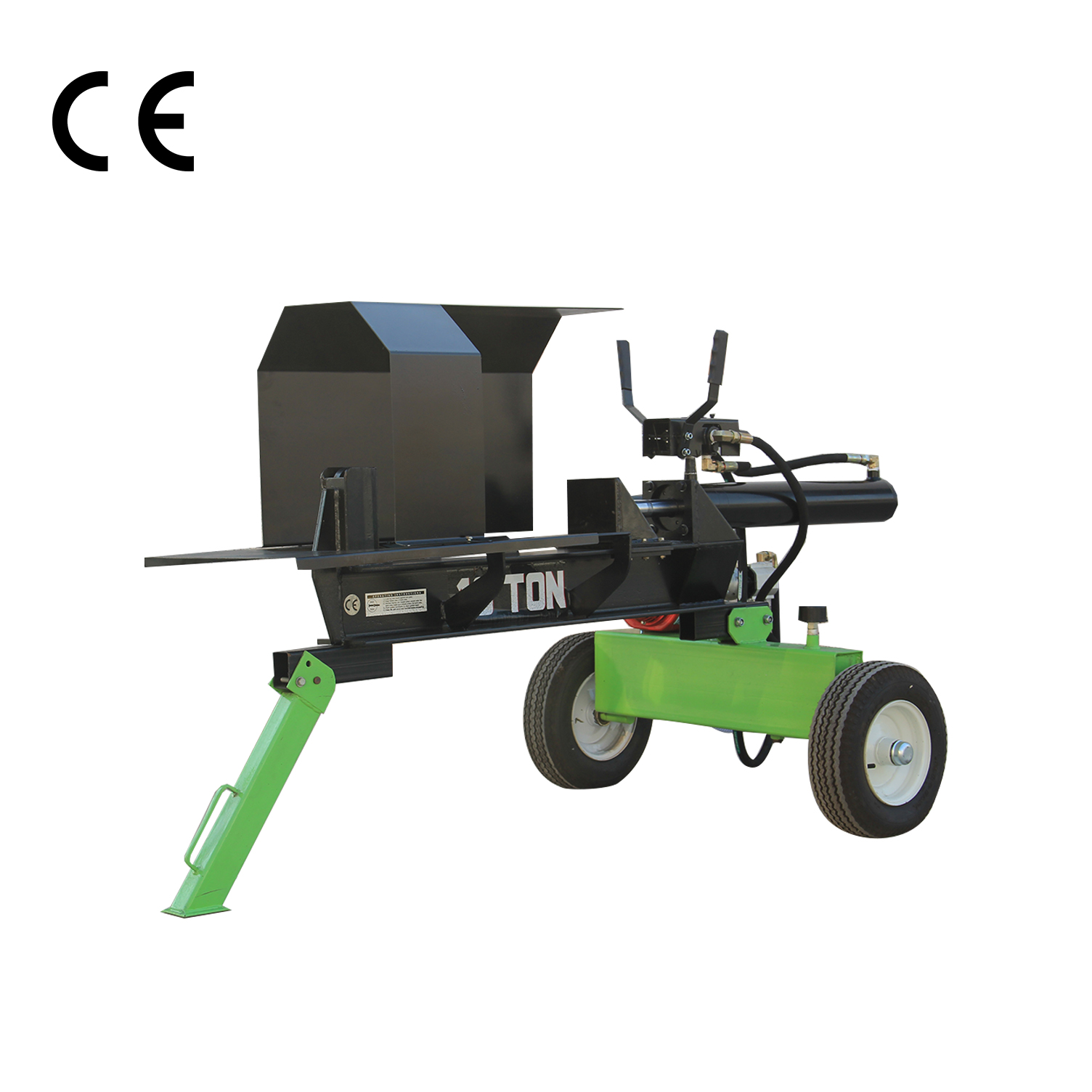

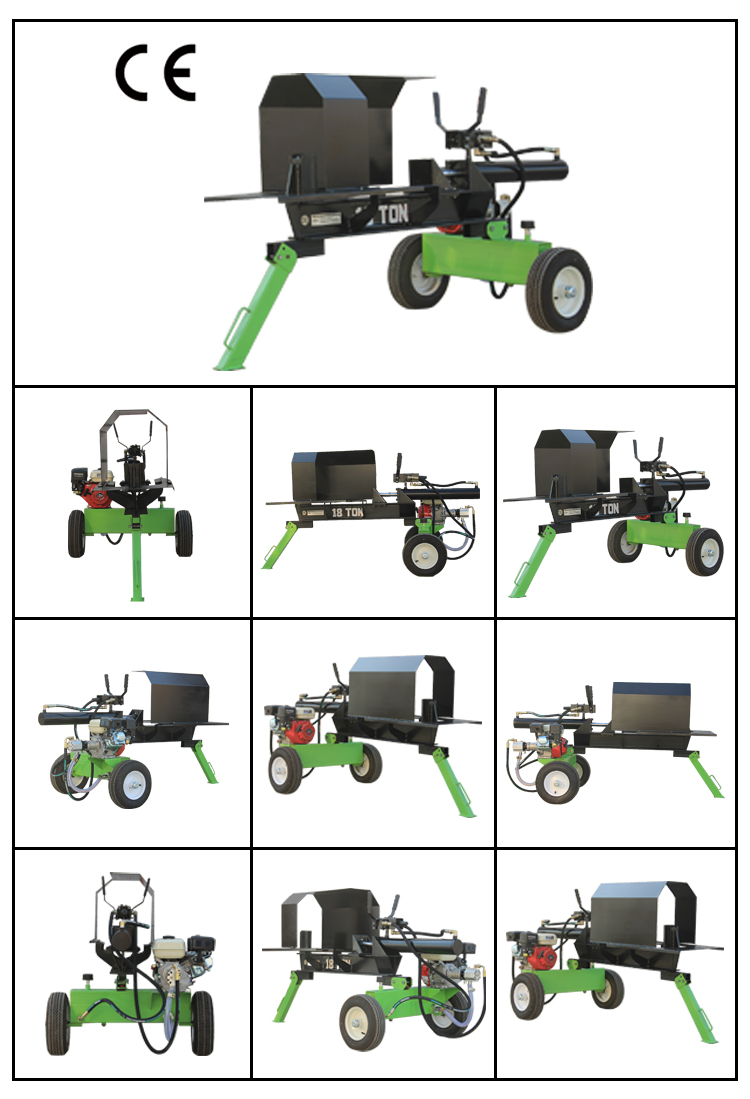

LS18T (new) -Commercial use

Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

Engine Brand: LIFAN, KOHLER, B&S

Start: manual (recoil) start

Cylinder Size: Hydraulic 3.5” cylinder

Beam (main body): industrial grade H-steel, 150 x 150mm

Length of log to split: 21”

Diameter of log to split: 16”

Oil Capacity: 12 liters

Gear Pump: 2 stage 11GPM flow

Valve: automatic return control valve w/ safety release function

Maximum Splitting Force: 18Ton

Wedge Height: 8

Split and Return Cycle Time: 10 seconds

Working Position: horizontal

Wheels and Tires: 16 inch pneumatic x 4.8 inch

Coupler: not included but can be fixed as optional part

Maximum Recommended Tow Speed: 25 km/h (if installing trailer coupler equipment)

Package Weight: 177kgs

Package Size (20ft): 1800mm* 400mm*700mm (20ft)

Package Size (40HQ): 2100mm*400mm*600mm (40HQ)

Cross Wedge: optional

Quantity per package (wooden box): 1PC/PKG

Volume: 51PCS /20GP; 116 PCS /40HQ (1PC/PKGS)

Certificate

Machinery Directive 2006/42/EC

Electromagnetic compatibility 2014/30/EU

Certificate No: TPI173C-210122

Report No: TCF-HE-HX20121501BKC210134JR

Standard(s): EN ISO 12100:2010

Certificate valid: 22 Jan.2026

EN 609-1:2017, EN 60204-1:2018

EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC: 2012
