PTO log saw (CL700-1B)

Model NO.:CL700-1B

Price:USD 460.00-480.00 / sets

Delivery:FOB

Min order:4 sets

Accept Min order:Yes

Supply Ability:400 sets / Month

Stock Time:30 Days

0.00
0.00


Model NO.:CL700-1B

Price:USD 460.00-480.00 / sets

Delivery:FOB

Min order:4 sets

Accept Min order:Yes

Supply Ability:400 sets / Month

Stock Time:30 Days

Brand: GREAT-BOOM

Model: CL700-1B (PTO, 3-Point link)

Engine Brand: LIFAN, B&S, KOHLER

Tractor Power: 25 horsepower, 35 horsepower, 45 horsepower, 55 horsepower

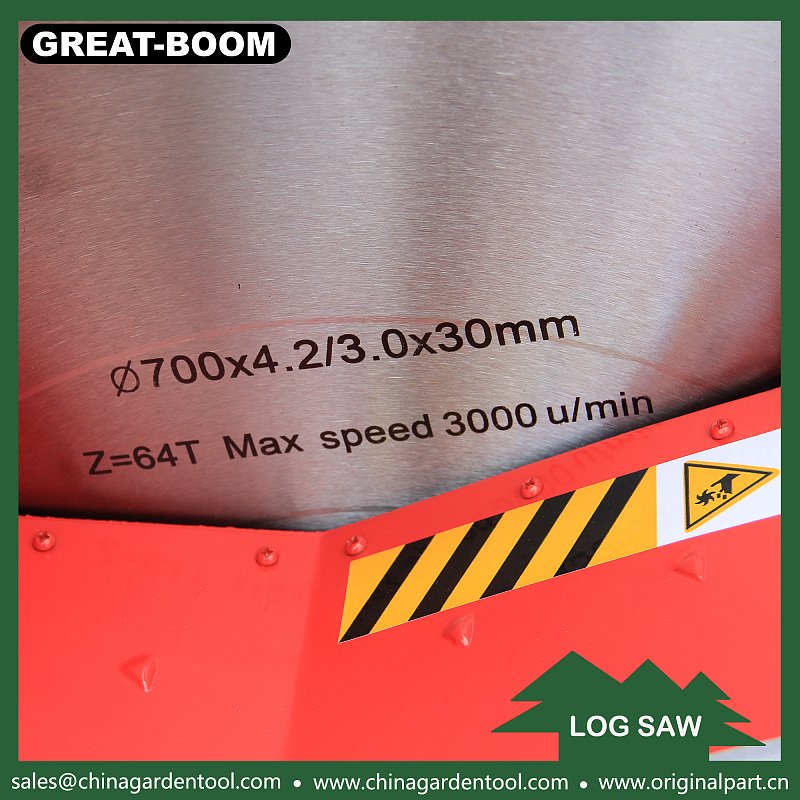

Blade Specification: 700 x 4.5 x 3 x 30mm64Z

Blade Speed: 540 rpm / 1440 rpm

Max. Material Length to cut: 1200mm

Min. Material Length to cut: 300mm

Max. Cutting Capacity (reversing cut): 270mm

Min. Cutting Capacity: 25mm

Wheel Size: 200mm hard rubber wheel

Transmission Mode: belt driven

Device of Log Holding: optional

Device of Log Carrier: optional

Device of Log Ruler: optional

Package Mode: Iron Frame and wrapping film

Quantity per Container: 32PCS / 32PKGS / 20GP; 64PCS / 64 PKGS / 40HQ

Package Weight: 139.00KGS

Product Description

PTO log saw 3 point link saw central machinery sawmill parts

Product Application

Log saw, it is with 600mm and 700mm blade, the gasoline engine is with 9.0HP, 13.0HP AND 15.0HP, the best seller is 13.0HP/700mm log saw.

China factory Product and sell wood Log Saw
Model
Gasoline engine power wood used portable sawmill from Shandong factory
Engine Brand
Lifan, Honda, B&S, Kohler or other
Blade Specification
700*4.5*3*30mm 64Z
Material Length to Cut
300mm to 1150mm
Cutting Capacity
25mm to 270mm
Wheel Size
400mm
Coupler Size
50mm
Transmission Mode
Belt drived

Main Features

1) Oil cylinder is produced in dust-free workshop

2) Simple structure in linear type ,easy in installation and maintation.

3) The main sealing ring of oil cylinder is imported from the United States

4) Industrial standard h-steel, more solid

5) The whole machine is tested one by one.

6) The first Chinese manufacturer of hydraulic wood - splitting machines

Certifications
Detailed Images

Main Features

Name:CL700-1A Log Saw

Brand:Great-Boom

Original: China

Domestic and international famous engines, strong driving force, low fuel consumption, TVT, CV, HM, Mn65 blade.

Workshop

Quality control: We test the whole order machine one by one.


Machine Parts

Name: CNC Machine
Accurately control the size of production accessories.

About Us

Exihibition

* We attend exhibitions at home and abroad every year.

Looking forward to seeing you.

Our factory

* We can provide OEM & ODM, Special sample available, Any painting color available.

Packing & Delivery
Packaging
Size
75mm (L) * 110 mm(W) * 110mm(D)
Weight
139KG
Iron Frame & Wrapping film or Wooden Pallet (optional) or according customer enquirment.
Packaging Details
Iron Frame & Wrapping film or Wooden Pallet (optional) or pack it according to customers special request.
