Brand: GREAT-BOOM
Model: LS40BD
Engine: 13 horsepower, 4 stroke, OHV, air cooled
Engine Brand: LIFAN, KOHLER, B&S
Start: manual (recoil) start
Hydraulic Cylinder Size: 5.0" size
Oil Capacity: 20 liters
Gear Pump: 2 stage 16GPM flow
Valve: automatic return control valve with safety release function
Maximum Splitting Force: 40Ton
Wedge Height: 8 inch (200mm)
Split and Return Cycle Time: 16 seconds
Maximum Log Length: 24 inch (610mm)

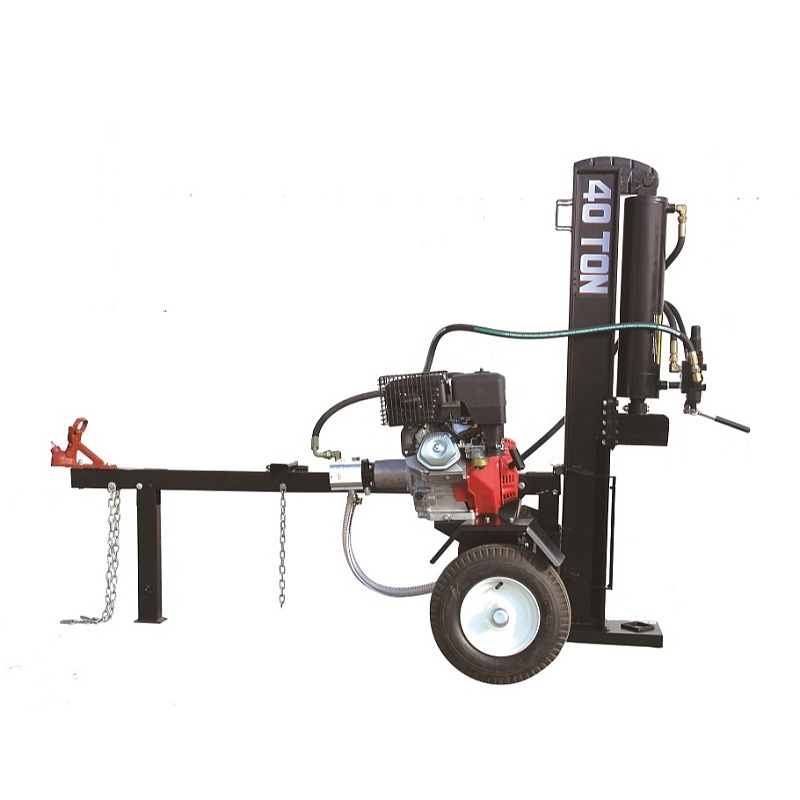

Working Position: horizontal and vertical
Wheels and Tires: 16 inch pneumatic x 4.8 inch
Mudguard: with
Coupler:50mm cast steel with safety chains
Maximum Recommended Towing Speed: 40 km/h
Package Diameter: 187cmx51cmx65cm
Package Weight: 315kgs
Warranty: 6 months
If Wooden Pallet: 30PCS / 30PKGS / 20GP; 84PCS / 84PKGS / 40HQ
If Iron Frame Package: 40PCS / 40PKGS / 20GP; 88PCS / 88PKGS / 40HQ
