LS24T30T40T50T-CTM-L

Model NO.: LS24T30T40T50T-CTM-L

Price: USD 628.00-860.00 / sets

Delivery: FOB

Min order: 4 sets

Accept Min order: Yes

Supply Ability: 400 sets / Month

Stock Time: 45 Days

0.00
0.00


Model NO.: LS24T30T40T50T-CTM-L

Price: USD 628.00-860.00 / sets

Delivery: FOB

Min order: 4 sets

Accept Min order: Yes

Supply Ability: 400 sets / Month

Stock Time: 45 Days

Brand: GREAT-BOOM

Model: LS24T/30T/40T-610mm-CTM-L (lifting arm)

Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

             9.0 horsepower, 4 stroke, OHV, air cooled

             13.0 horsepower, 4 stroke, OHV, air cooled

Engine Brand: LIFAN, KOHLER, B&S

Start: manual (recoil) start

Log Lifting Table: with

Hydraulic Cylinder Size: 114.30mm diameter x 610mmstroke;

                                         127.00mm diameter x 610mmstroke

                                         140.00mm diameter x 610mmstroke

Oil Capacity: 30.5 liters

Gear Pump: 2 stage 11GPM flow;

2 stage 16GPM flow

2 stage 16GPM flow;

Valve: automatic return control valve with safety release function

Maximum Splitting Force: 24Ton, 30Ton, 40Ton

Wedge Height: 8 inch (200mm) cast wedge material

Split and Return Cycle Time: 13 seconds

                                                13 second

                                                14 second

Maximum Log Length: 24 inch (610mm)

Working Position: horizontal & vertical

Wheels and Tires: 16 inch pneumatic x 4.8 inch tubeless

Mudguard: with

Coupler:50mm cast steel with safety chains

Maximum Recommended Towing Speed: 40 km/h

Package Diameter: 210cmx51cmx45cm

Package Weight: 240KGS; 253KGS; 262KGS

Warranty: 24 months

If Iron Frame Package: 40PCS / 40PKGS / 20GP; 88PCS / 88PKGS / 40HQ

Product Description

40Ton 13hp Gasonline Engine 30.5 liter Oil Tank Hydraulic Log Splitter With Lift

Product Application

Log splitter, we product both gasoline and diesel engine wood splitter, The main tonnage: 18ton, 24ton, 30ton, 40ton and 50ton.

China factory Product and sell wood Log Splitter
Model
CE 40Ton 13HP Gasoline Engine 30.5 Liter Oil Tank Hydraulic Log Splitter With Lift
Engine Brand
Lifan, Honda, B&S, Kohler, H-power or other
Operation mode
Vertical & Horizontal
Cylinder Stroke
610mm for log splitter
Beam
H-Beam
Wedge
Casted
Certificate
CE TUV
Quality guarantee
24 month

Main Features

1) Oil cylinder is produced in dust-free workshop

2) Simple structure in linear type ,easy in installation and maintation.

3) The main sealing ring of oil cylinder is imported from the United States

4) Industrial standard h-steel, more solid

5) The whole machine is tested one by one.

6) The first Chinese manufacturer of hydraulic wood - splitting machines

Certifications

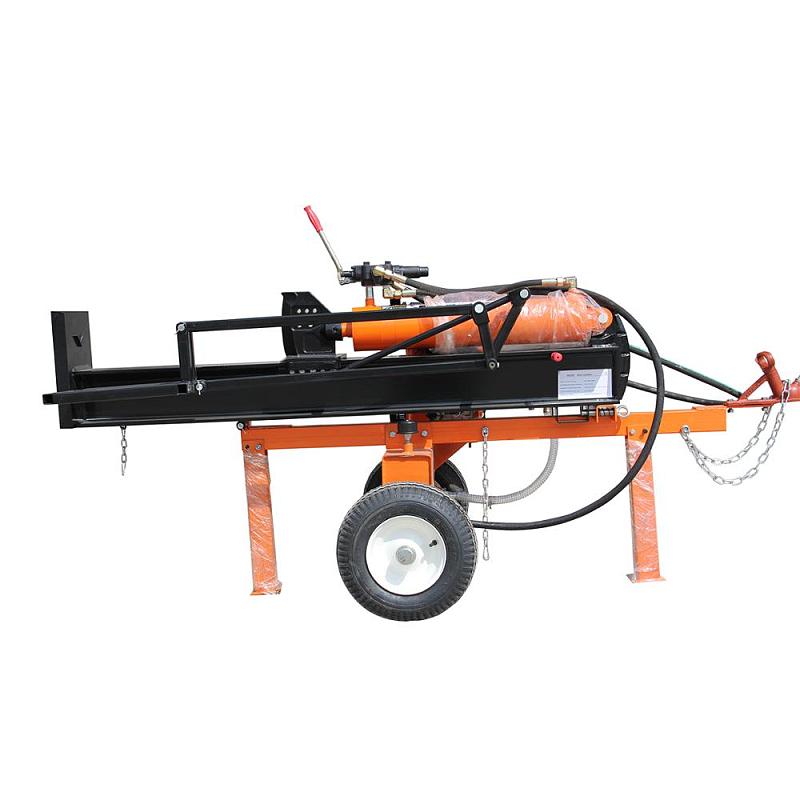

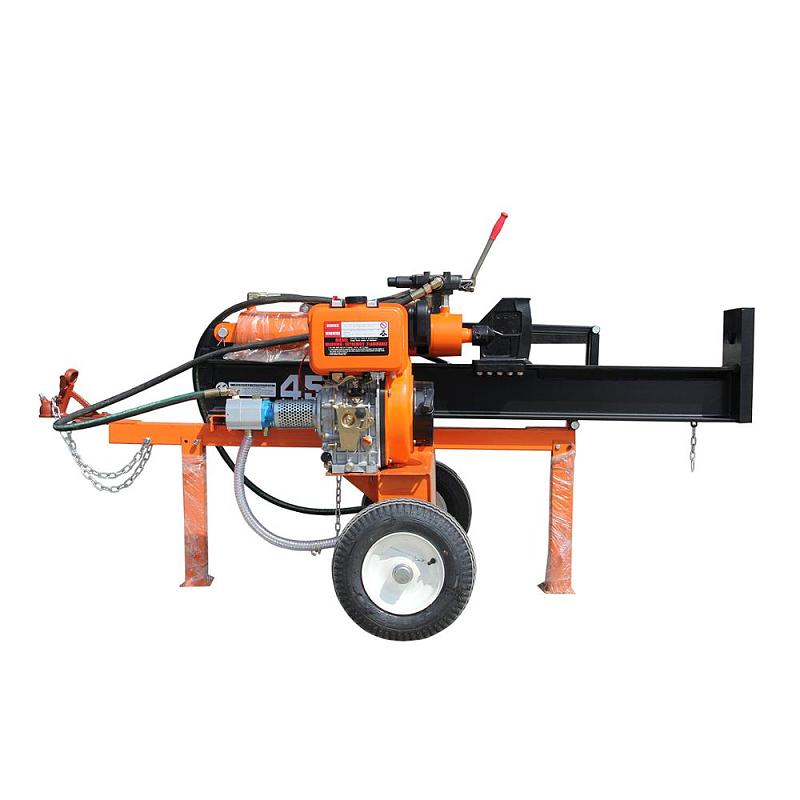

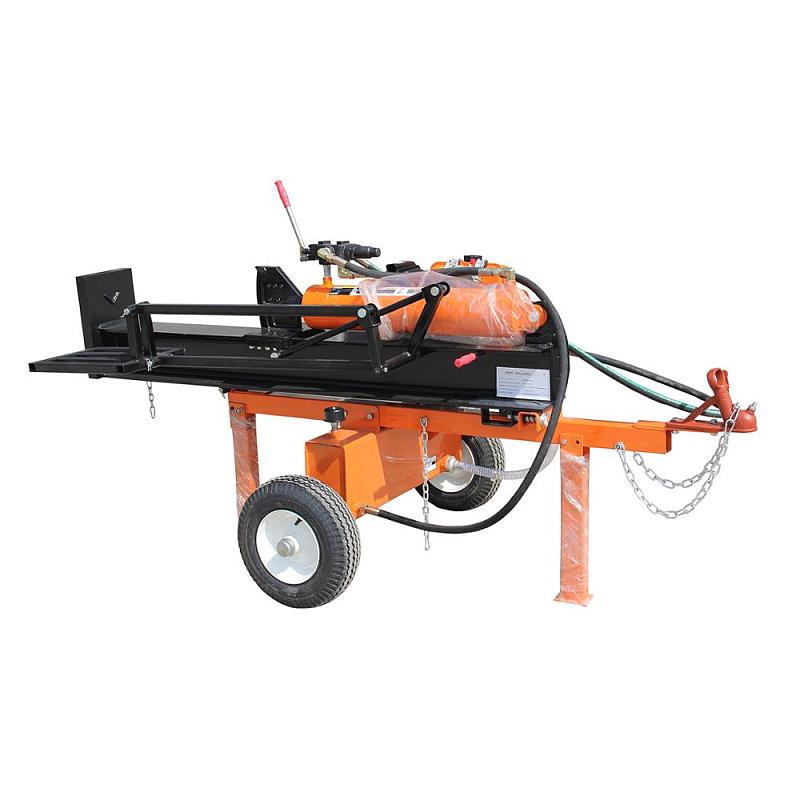

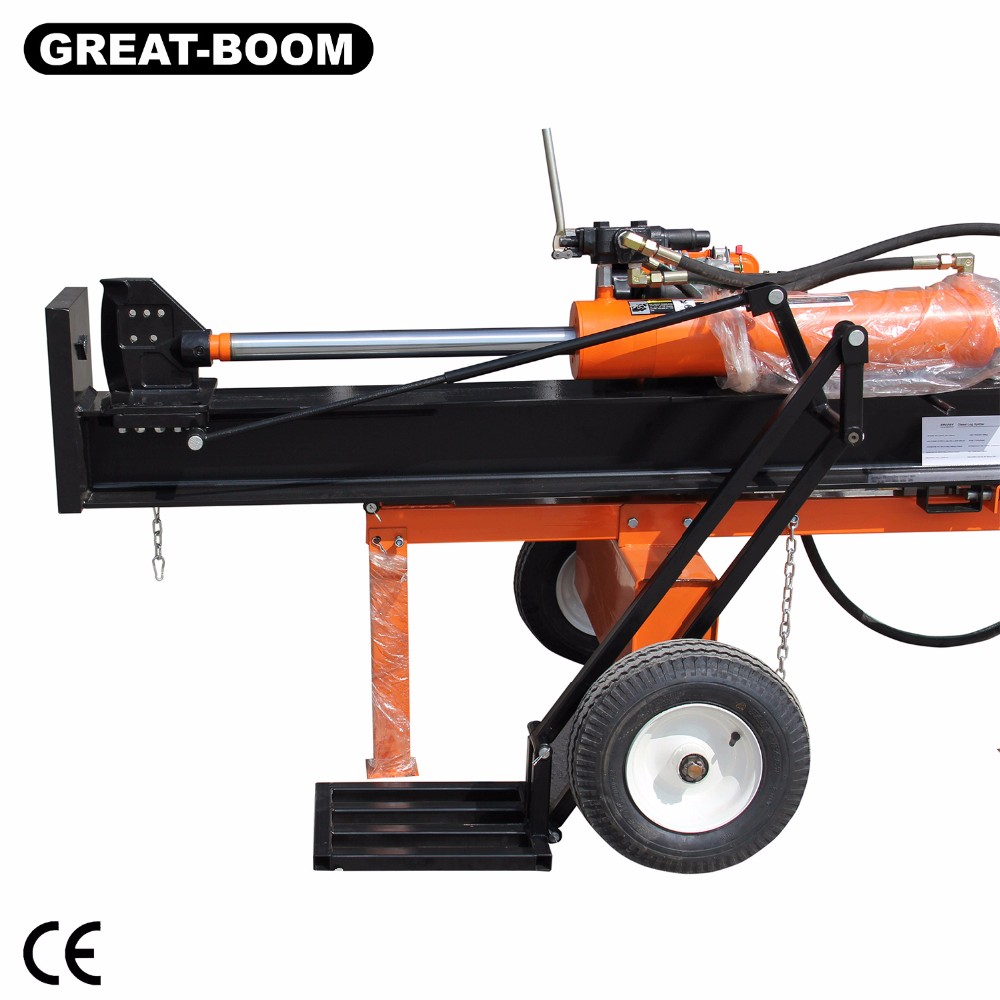

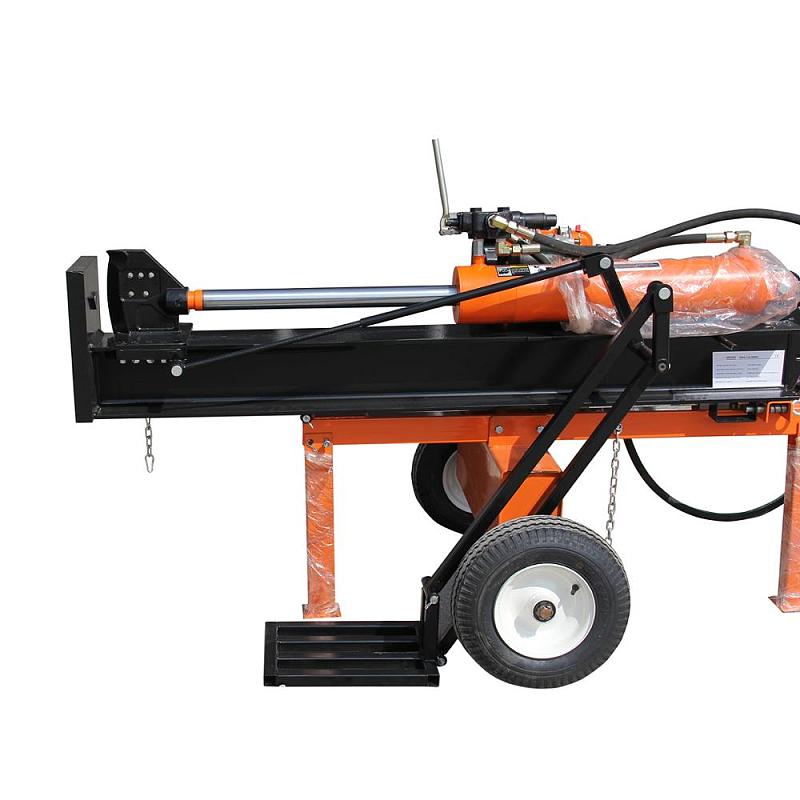

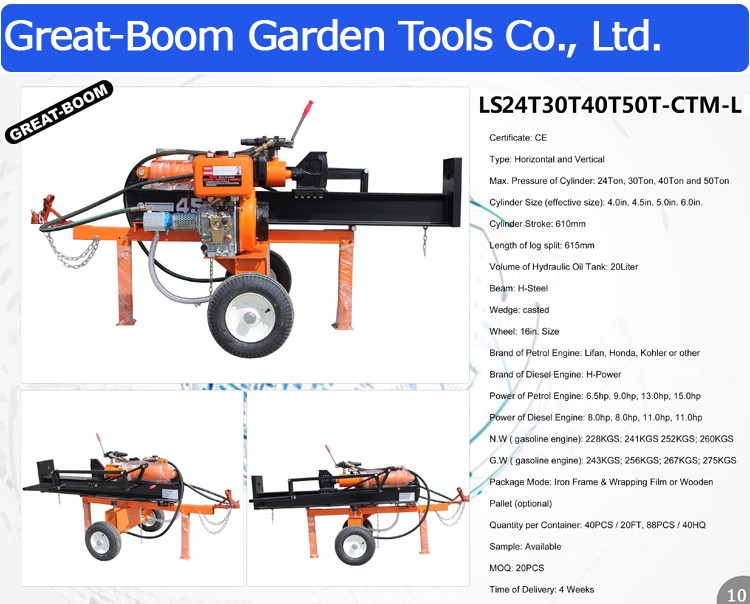

Detailed Images

Main Features

Name:LS 24ton 610mm CTM-L Lifan engine used log splitter

Brand:Great-Boom

Original: China

Domestic and international famous engines, strong driving force, low fuel consumption, Casted Wedge, vertical and horizontal type work ways

Workshop

Quality control: We test the whole order machine one by one.

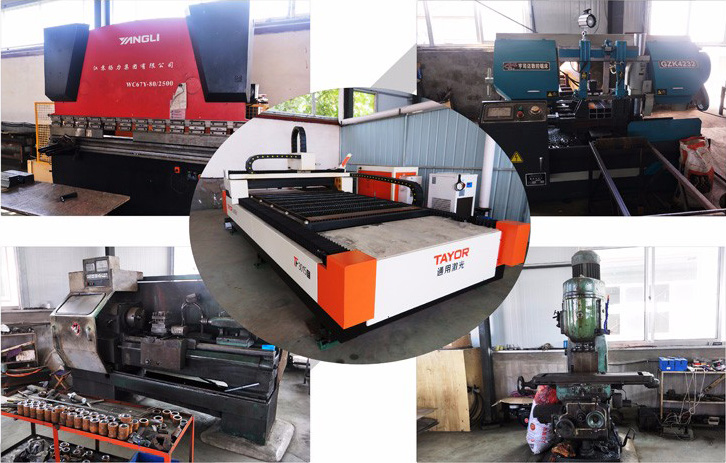

Machine Parts

Name: CNC Machine
Accurately control the size of production accessories.

About Us

Exihibition

* We attend exhibitions at home and abroad every year.

Looking forward to seeing you.

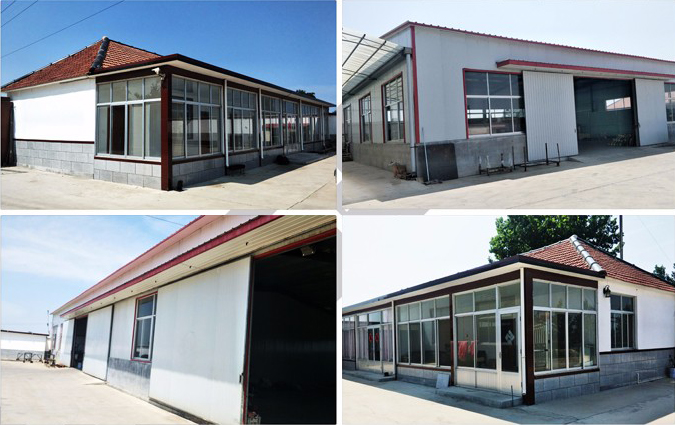

Our factory

* We can provide OEM & ODM, Special sample available, Any painting color available.

Packing & Delivery
Packaging
Size
220mm (L) * 54 mm(W) * 54mm(D)
Weight
243KG
Iron Frame & Wrapping film or Wooden Pallet (optional) or according customer enquirment.
Packaging Details
Iron Frame & Wrapping film or Wooden Pallet (optional) or pack it according to customers special request.
