Brand: GREAT-BOOM

Model: LS24T/30T/40T-610mm-ETM

Engine: 6.5 horsepower, 4 stroke, OHV, air cooled

             9.0 horsepower, 4 stroke, OHV, air cooled

            13.0 horsepower, 4 stroke, OHV, air cooled

Engine Brand: LIFAN, KOHLER, B&S

Start: manual (recoil) start

Hydraulic Cylinder Size: 114.30mm diameter x 610mmstroke;

                                         127.00mm diameter x 610mmstroke

                                          140.00mm diameter x 610mmstroke

Oil Capacity: 20 liters

Gear Pump: 2 stage 11GPM flow;

2 stage 16GPM flow

2 stage 16GPM flow;

Valve: automatic return control valve with safety release function

Maximum Splitting Force: 24Ton, 30Ton, 40Ton

Wedge Height: 8 inch (200mm)

Split and Return Cycle Time: 13 seconds

                                                13 second

                                                14 second

Maximum Log Length: 24 inch (610mm)

Working Position: horizontal & vertical

Wheels and Tires: 16 inch pneumatic x 4.8 inch

Mudguard: with

Coupler:50mm cast steel with safety chains

Maximum Recommended Towing Speed: 40 km/h

Package Diameter: 200cmx51cmx45cm

Package Weight: 215KGS; 227KGS; 239KGS

Warranty: 24 months

If Iron Frame Package: 40PCS / 40PKGS / 20GP; 88PCS / 88PKGS / 40HQ

Product Description

Hot selling firewood splitting machine pto log splitter

Product Application

Log splitter, we product both gasoline and diesel engine wood splitter, The main tonnage: 18ton, 24ton, 30ton, 40ton and 50ton.

China factory Product and sell wood Log Splitter
Model	Hot selling firewood splitting machine pto log splitter
Engine Brand	Lifan, Honda, B&S, Kohler, H-power or other
Operation mode	Vertical & Horizontal
Cylinder Stroke	610mm
Beam	H-Beam
Wedge	Casted
Certificate	CE TUV
Quality guarantee	24 month

Main Features

1) Oil cylinder is produced in dust-free workshop

2) Simple structure in linear type ,easy in installation and maintation.

3) The main sealing ring of oil cylinder is imported from the United States

4) Industrial standard h-steel, more solid

5) The whole machine is tested one by one.

6) The first Chinese manufacturer of hydraulic wood - splitting machines

Detailed Images

Main Features

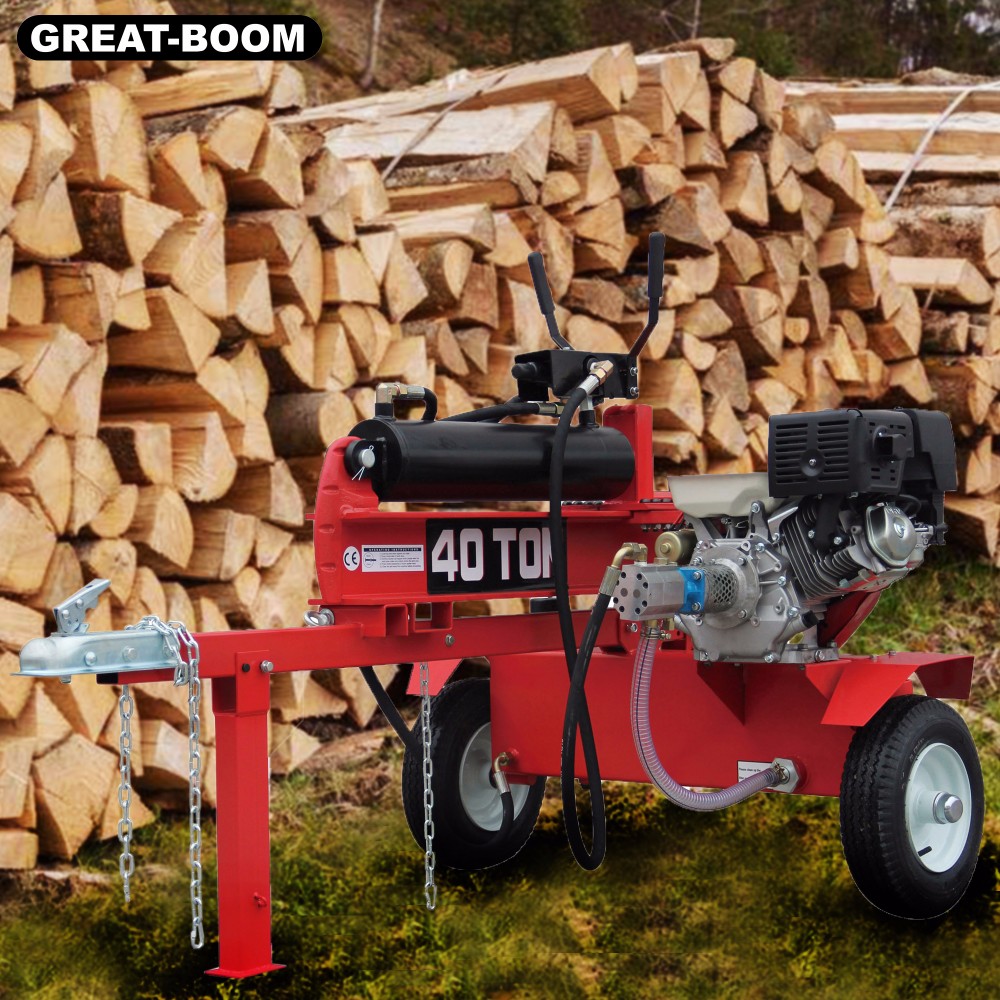

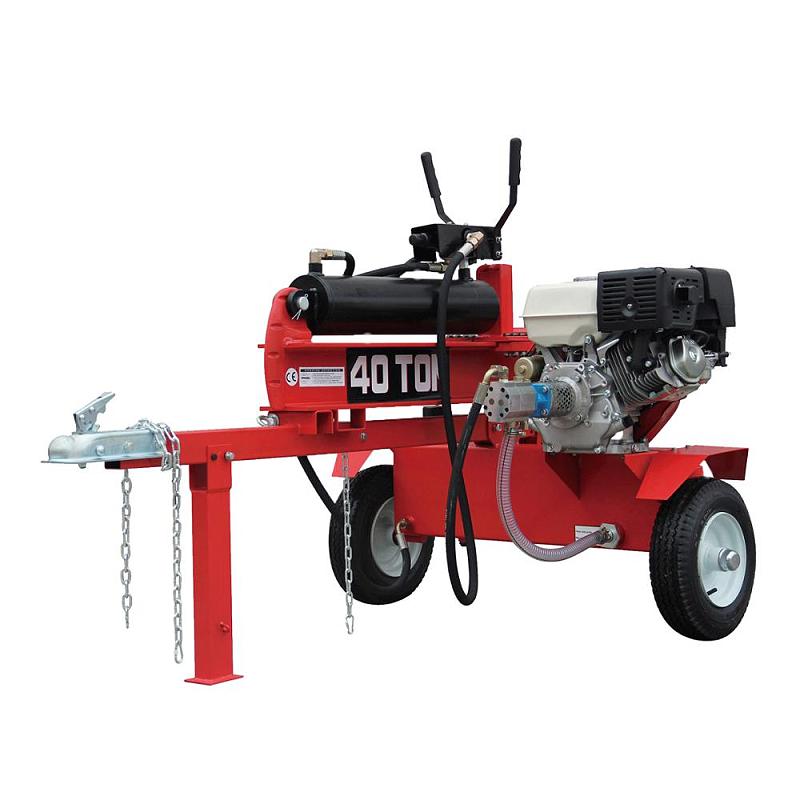

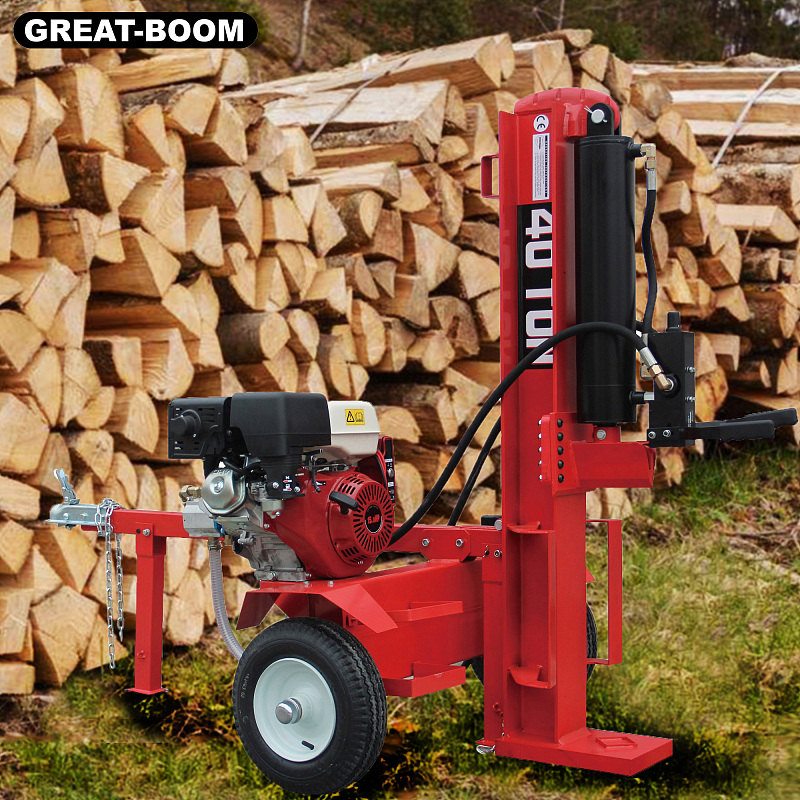

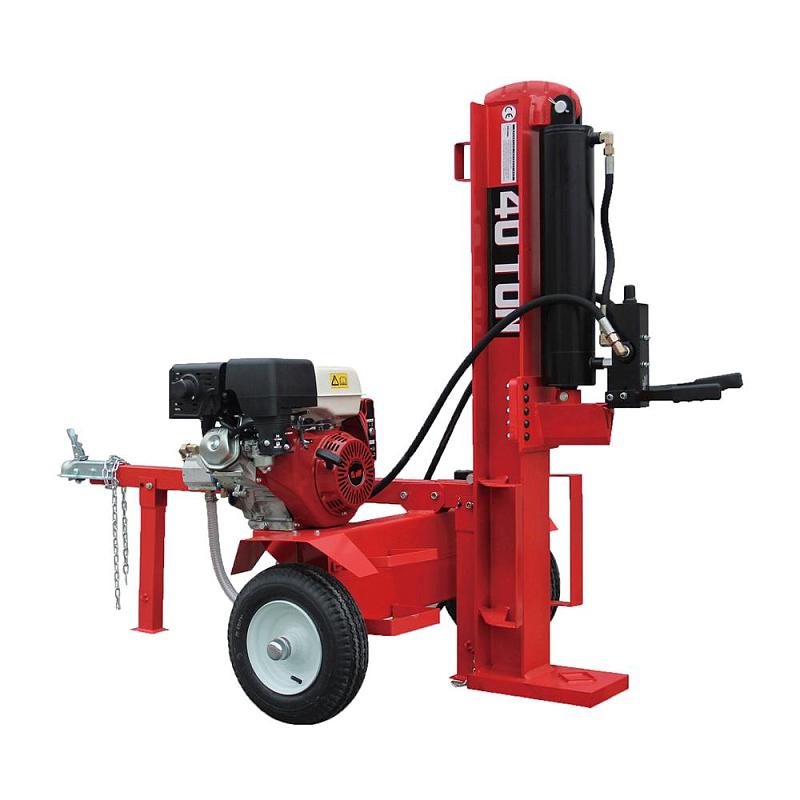

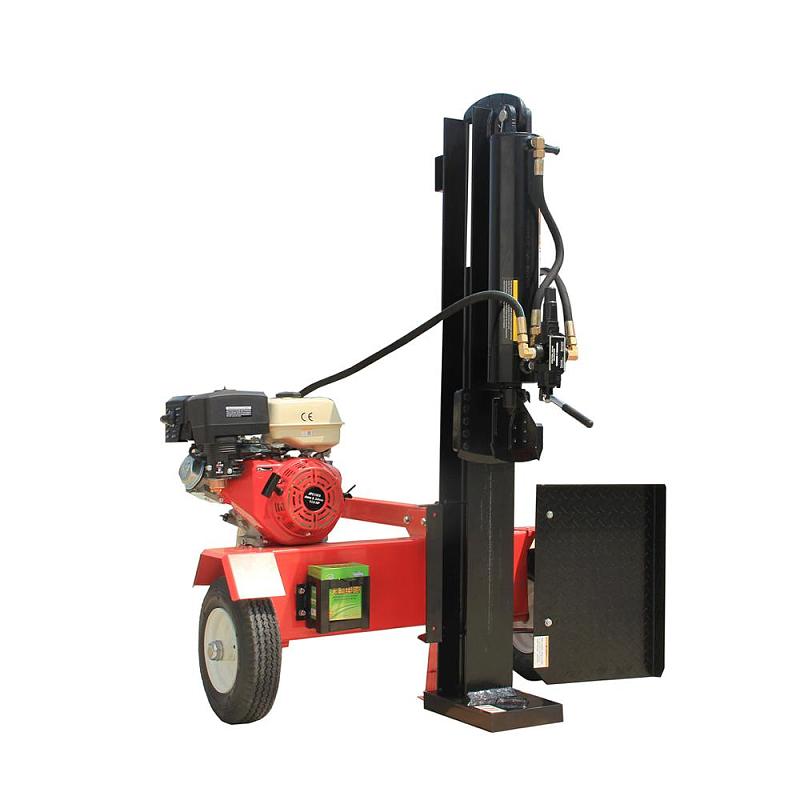

Name:LS 24Ton 30Ton 40Ton 610mm ETM log splitter

Brand:Great-Boom

Original: China

Domestic and international famous engines, strong driving force, low fuel consumption, Casted Wedge, vertical and horizontal type work ways

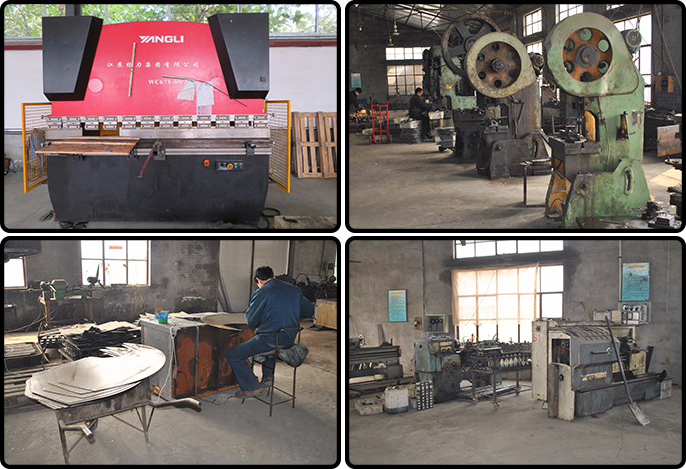

Workshop

Quality control: We test the whole order machine one by one.

Machine Parts

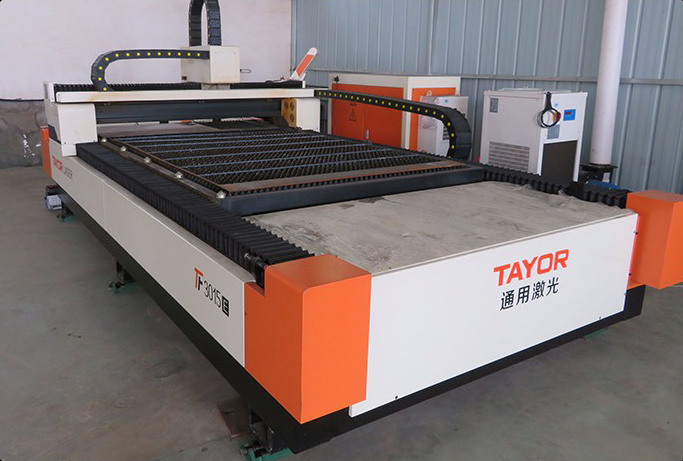

Name: CNC Machine
Accurately control the size of production accessories.

About Us

Exihibition

* We attend exhibitions at home and abroad every year.

Looking forward to seeing you.

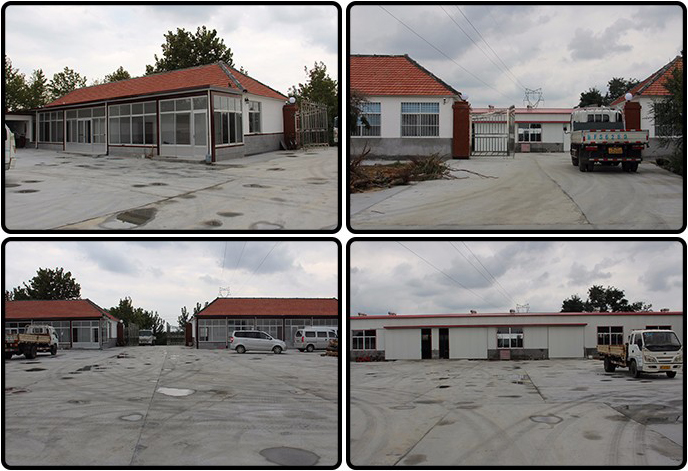

Our factory

* We can provide OEM & ODM, Special sample available, Any painting color available.

Packing & Delivery

Packaging
Size	220mm (L) * 54 mm(W) * 54mm(D)
Weight	215KG
Iron Frame & Wrapping film or Wooden Pallet (optional) or according customer enquirment. Packaging Details	Iron Frame & Wrapping film or Wooden Pallet (optional) or pack it according to customers special request.

Related Products

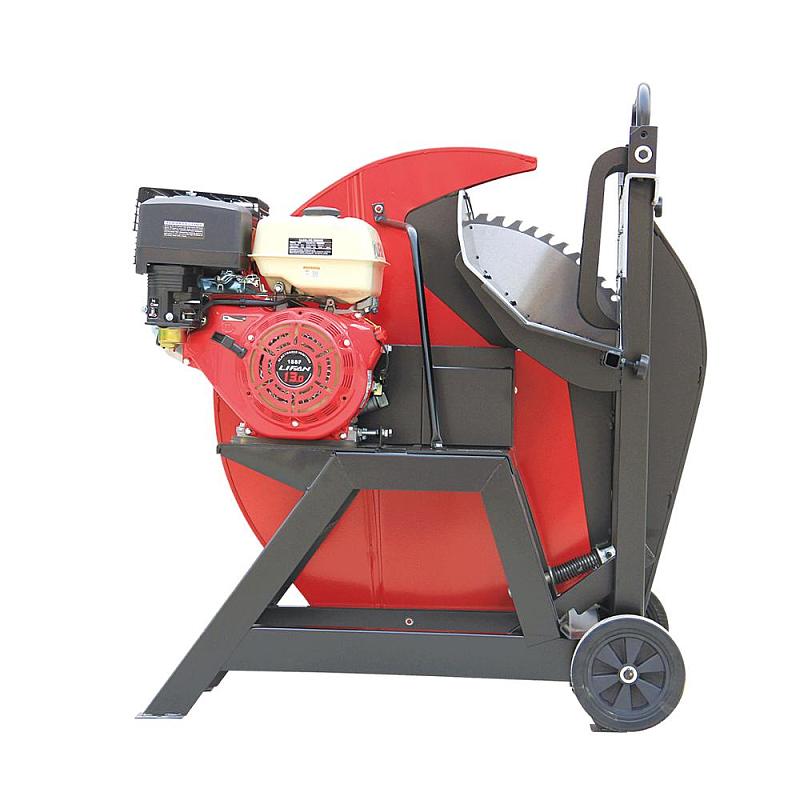

CL700-1

91.8% Response Rate

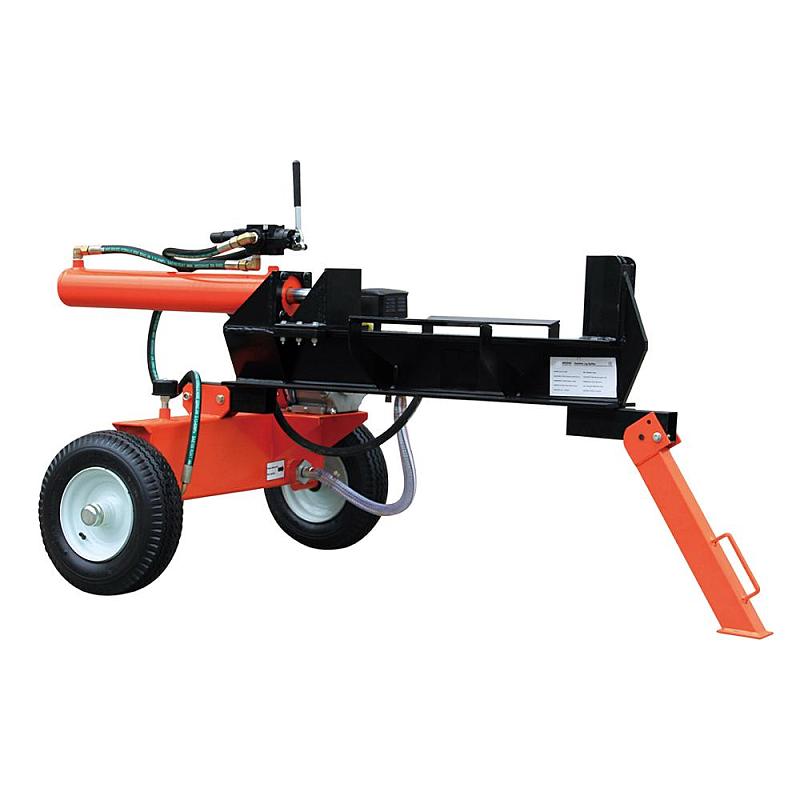

LS18T-MNM

91.8% Response Rate

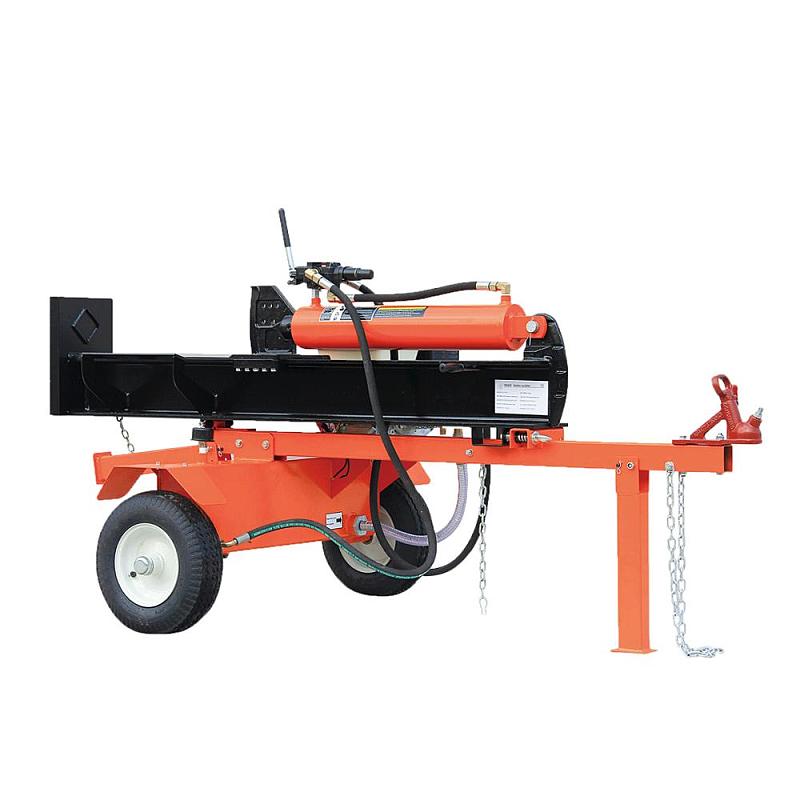

LS 24Ton 30Ton 40Ton 50Ton 610mm CTM
